Hydrpgen Refueling Station
Hydrogen refueling station is designed to deliver hydrogen gas to hydrogen fuel vehicles.A hydrogen refueling station contains main components of- Hydrogen Storage Tank, Hydrogen Compressor, Hydrogen Dispenser, Control & Monitoring System and etc.There are two main pressure levels of HRS, 70MPa and 35MPa, other pressure degree could be customized according to customers needs.
We can provide two types of hydrogen refueling station, permanent type and containerized type-
Permanent Hydrogen Refueling Station
S Series Standard Type
This standard type station adopts modular design concept,it is a suitable option for customers with high requirements on functions,safety protections and automation but has no land space concern.
Specifications
Suction Pressure 5MPa-20MPa
Max.Discharge Pressure 45/87.5MPa
Refueling Pressure 35/70MPa
Refueling Temp. 35 MPa Paas Low As-10℃/70 M Paas Low As-40℃
Refueling Capacity 200-5000kg/12h@12.5MPa

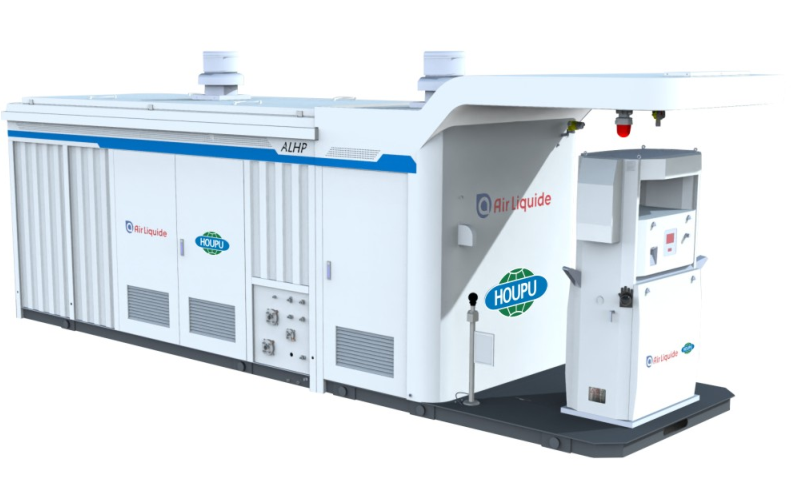

Containerized Hydrogen Refueling Station
C Series General Type
The type of station integrates hydrogen compressor,hydrogen refueling dispenser,heat exchange system in a skid,compact in structure and convenient to install,with minimized project land,reduced on-site installation work and installation period.
Specifications
Suction Pressure 5MPa-20MPa
Max.Discharge Pressure 45/87.5MPa
Refueling Pressure 35/70MPa@15℃
Refueling Temp. 35 MPa Paas Low As-10℃/70 M Paas Low As--40℃
Refueling Capacity 50-1000kg/12h@12.5MPa
E Series Export Type
This export type station is designed according to applicable European standards, it fulfills various requirements in European and Asian countries.This series includes stations both @35MPa and @70MPa.
Application Scenario
